EC fans help your equipment become more outstanding

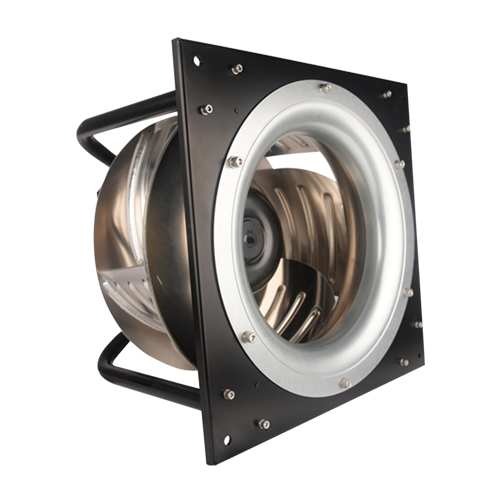

It adopts advanced electronic commutation technology and the bracket can be selected by yourself to perfectly adapt to various needs.

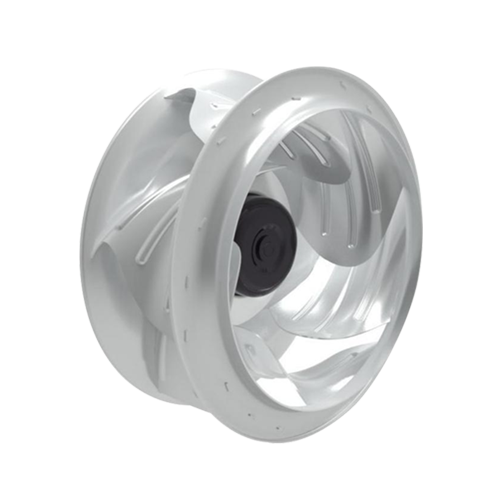

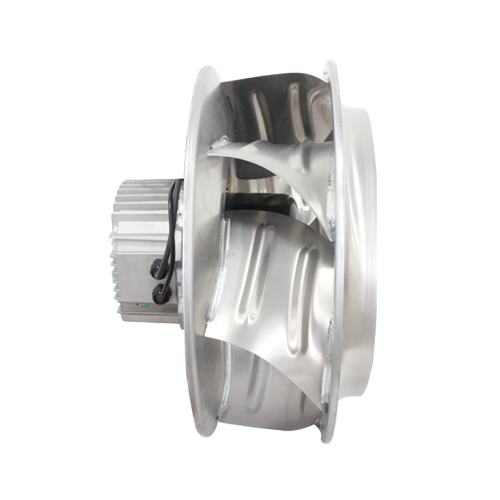

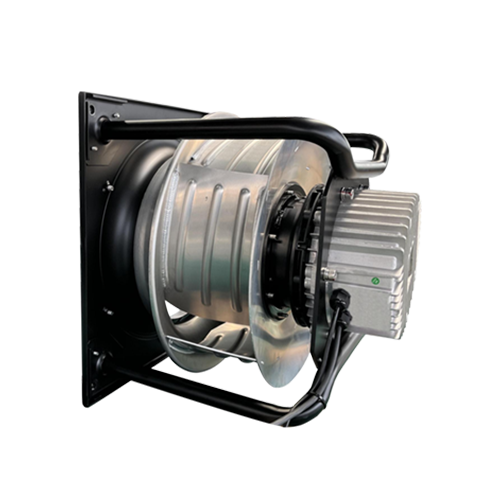

EC Backward-curved Centrifugal Fan

Product Characteristics：
EC Backward-curved Centrifugal Fan, diameter of the fan ranges from 133mm to 630mm, The fan is made of plastic material (≤ 250mm) or metal material (≥280mm).The performance of the standard version basically covers the requirements of conventional applications. Product certification: CCC,on demand certification CE,UL.
Component of product：

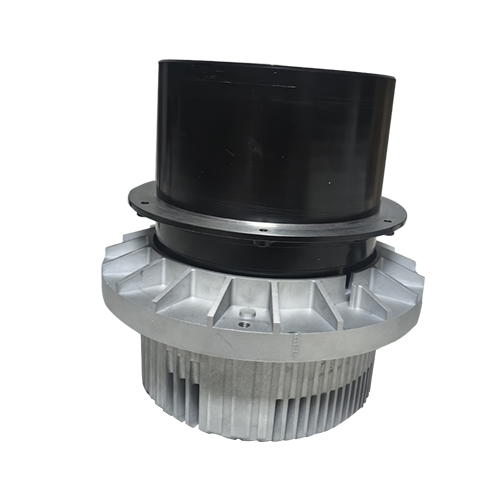

Backward-curved centrifugal fan,EC external rotor motor, Collecting ring
Working environment and applicable conditions：

Power supply: Single-phase 220V~240V,50/60 Hz
Three-phase 380V~460V, 50/60 Hz
Control mode: VSP (on-demand VSP/PWM, RS485)
Protection level: lP 54
Insulation class: F
Bearings: maintenance-free bearings
Operating temperature: -25~+60°C
Relative humidity: ≤95%
Altitude:≤1000m

Applications：
It is widely used in air purification, ventilation system,HVAC,refrigeration,rail transit and electric Max Power communication. etc.

EC fan features

1

Energy savingLow carbon and energy saving, low installation cost

The direct-drive EC motor eliminates the need for intermediate transition media such as belts and pulleys. The motor directly drives the fan, improving the overall efficiency of the fan.
The efficiency of the EC motor is as high as over 90%, and the impeller is 75%. The direct drive has no transmission link, and the overall optimization and adjustment efficiency allows the motor and impeller to reach the high-efficiency area at the same time. The overall efficiency can reach up to 90% x 75% = 67.5%.
Compared with traditional AC fans, it can achieve energy savings of 10% to 45%.
The direct-drive EC motor eliminates the need for intermediate transition media such as belts and pulleys. The motor directly drives the fan, improving the overall efficiency of the fan.
The efficiency of the EC motor is as high as over 90%, and the impeller is 75%. The direct drive has no transmission link, and the overall optimization and adjustment efficiency allows the motor and impeller to reach the high-efficiency area at the same time. The overall efficiency can reach up to 90% x 75% = 67.5%.
Compared with traditional AC fans, it can achieve energy savings of 10% to 45%.
2

IntelligentVSP (PWM, RS485, etc. can be customized on demand)

3

Maintenance-freeMaintenance-free ball bearings

EC fans can save a lot of maintenance work and maintenance costs such as replacing belts and adding lubricants for traditional fans. It reduces the risk of belt breakage, belt dust pollution, and odor generated by belt transmission.
EC fans are light in weight, quick and easy to install, and can be quickly disassembled by two people

Fan Selection Process

1. Confirm operating conditions: airflow, static pressure.
2. Confirm fan type and installation space dimensions.
3. Confirm the fan’s usage environment, electrical environment, etc.
4. Based on points 1, 2, and 3, preliminarily filter the suitable standard product specifications.
5. Confirm control methods, installation methods, etc.
6. Confirm accessories, wiring, connectors, etc.
7. Confirm certification requirements.
8. Based on points 5, 6, and 7, verify whether the filtered products meet the requirements.
9. If the products are confirmed feasible after point 8, place an order directly with the sales manager. Otherwise, discuss corresponding requirements with the sales manager, establish a development plan, and proceed with modification and customization after cooperation is established.
ModelCurveVoltage
[V]		Frequency
[Hz]		Speed
[rpm]		Max Power
[W]		Max Airflow
[m³/h]		Noise
[dB(A)]

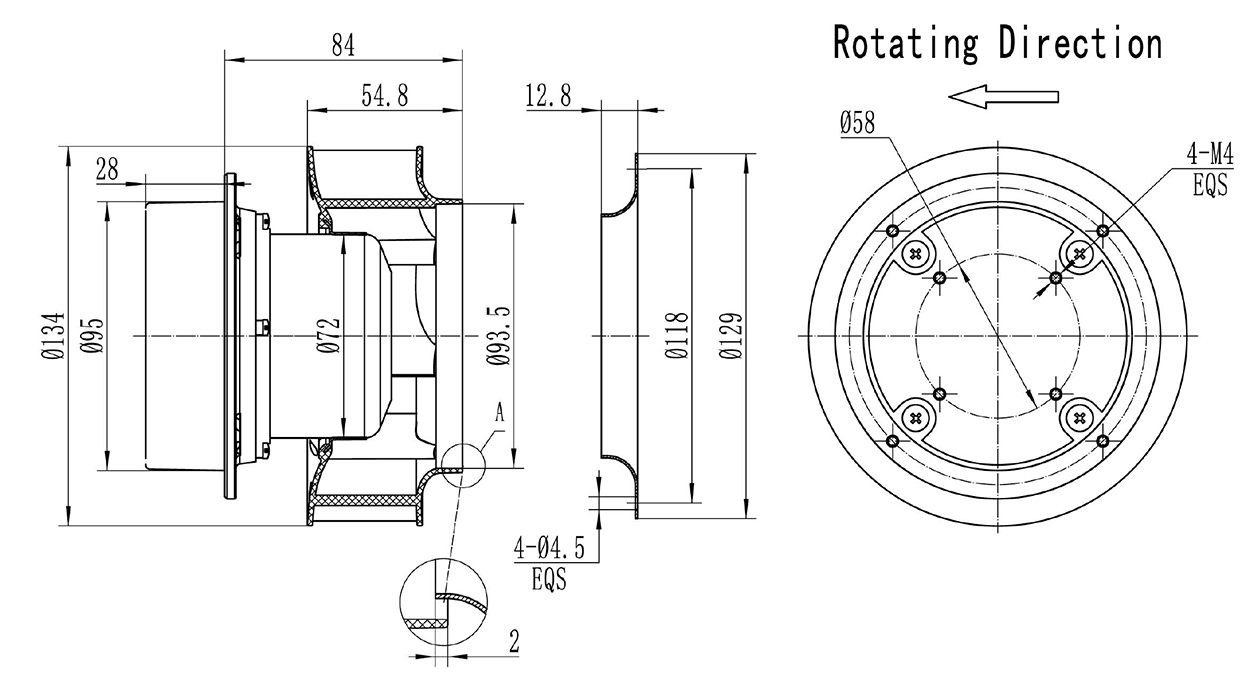

EC133A1A23050/6052208845068
EC175A1A23050/60503016688069
EC190A1A23050/60423015081070
EC225A1A23050/603060215145571.1
EC250A1A23050/603170295150573.1
EC250B1A23050/603920618216675
EC280A1A23050/602220195166069
EC280B1A23050/603100732391676
EC280C1A38050/6034501450407579
EC310A1A38050/6027101510593577
EC320B1A23050/602600655325076
EC320A1B23050/602150355273072
EC320C1A38050/6030281494516878
EC355A1A23050/602055645391574
EC400D1A23050/601520650521575
EC400A1A38050/6020601480670077
EC400C1A38050/6027453585830585
EC400B1B38050/6024052700748581
EC450A1A38050/6017251340745579
EC450C1A38050/60255053501520295
EC450B1B38050/60225039771396492
EC520A1A38050/60220042601283087.9
EC520B1B38050/6017002400981583.9
EC520C1A38050/60220056231330492.5
EC560A1A38050/60162036601527586.5
EC560B1B38050/60150029901417082.5
EC560C1A38050/60177055702071086.5
EC630A1A38050/60138038502010087.2
EC630B1B38050/60126029701833083.4

About Xinzhehao

Dezhou Xinzhehao Air Conditioning Fan Co., Ltd. is a comprehensive enterprise focusing on the research and development, production, sales, installation and after-sales service of air conditioning equipment and ventilation equipment. The company was established on November 27, 2015. The company’s business scope covers the research and development, production, sales, installation and maintenance of air conditioning equipment and parts, ventilation equipment and parts, electromechanical equipment, purification equipment, water tanks, cooling towers, etc.

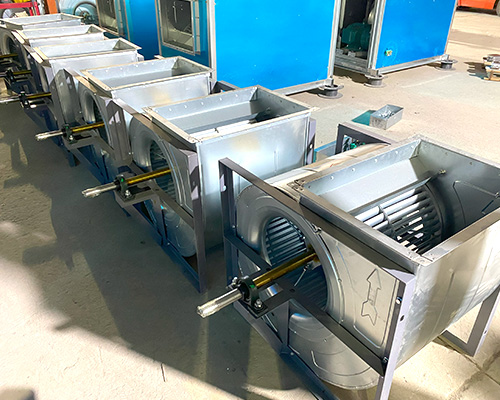

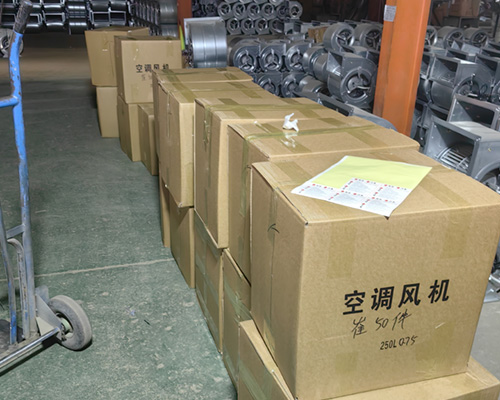

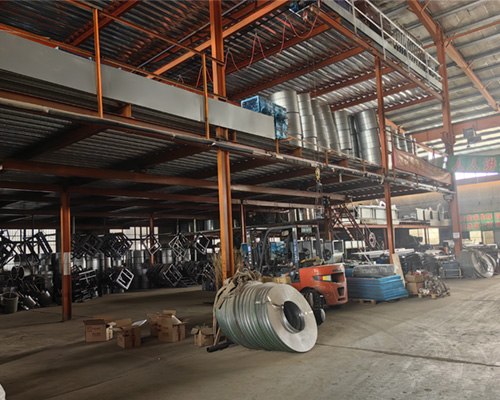

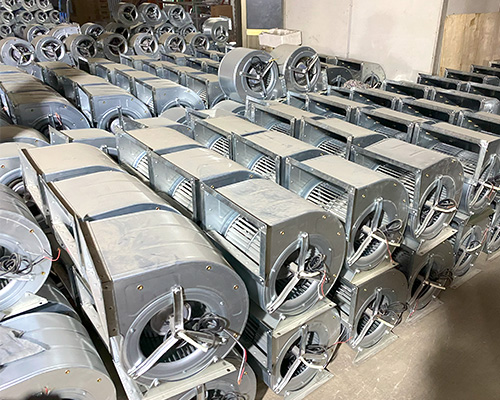

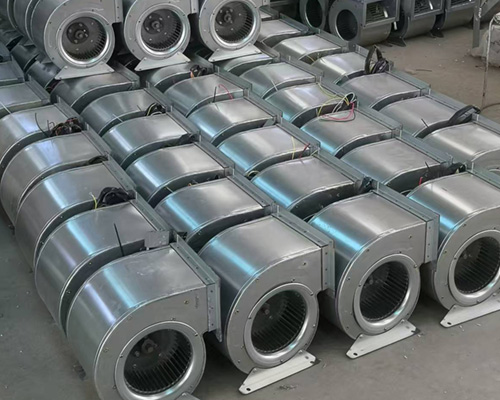

Our factory insights
